pylab_examples example code: finance_demo.py

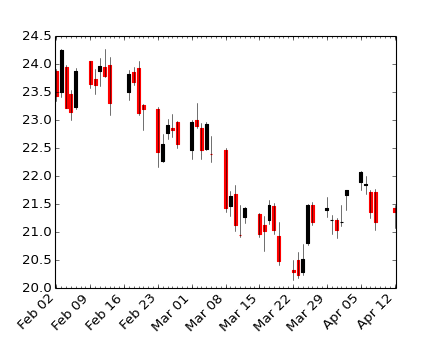

(Source code, png)

#!/usr/bin/env python
import matplotlib.pyplot as plt
from matplotlib.dates import  DateFormatter, WeekdayLocator, HourLocator, \
     DayLocator, MONDAY
from matplotlib.finance import quotes_historical_yahoo, candlestick,\
     plot_day_summary, candlestick2

# (Year, month, day) tuples suffice as args for quotes_historical_yahoo
date1 = ( 2004, 2, 1)
date2 = ( 2004, 4, 12 )


mondays = WeekdayLocator(MONDAY)        # major ticks on the mondays
alldays    = DayLocator()              # minor ticks on the days
weekFormatter = DateFormatter('%b %d')  # e.g., Jan 12
dayFormatter = DateFormatter('%d')      # e.g., 12

quotes = quotes_historical_yahoo('INTC', date1, date2)
if len(quotes) == 0:
    raise SystemExit

fig, ax = plt.subplots()
fig.subplots_adjust(bottom=0.2)
ax.xaxis.set_major_locator(mondays)
ax.xaxis.set_minor_locator(alldays)
ax.xaxis.set_major_formatter(weekFormatter)
#ax.xaxis.set_minor_formatter(dayFormatter)

#plot_day_summary(ax, quotes, ticksize=3)
candlestick(ax, quotes, width=0.6)

ax.xaxis_date()
ax.autoscale_view()
plt.setp( plt.gca().get_xticklabels(), rotation=45, horizontalalignment='right')

plt.show()

Keywords: python, matplotlib, pylab, example, codex (see Search examples)
