matplotlib.artist

class matplotlib.artist.Artist

Bases: object

Abstract base class for someone who renders into a FigureCanvas.

add_callback(func)

Adds a callback function that will be called whenever one of the Artist‘s properties changes.

Returns an id that is useful for removing the callback with remove_callback() later.

aname = 'Artist'
contains(mouseevent)

Test whether the artist contains the mouse event.

Returns the truth value and a dictionary of artist specific details of selection, such as which points are contained in the pick radius. See individual artists for details.

convert_xunits(x)

For artists in an axes, if the xaxis has units support, convert x using xaxis unit type

convert_yunits(y)

For artists in an axes, if the yaxis has units support, convert y using yaxis unit type

draw(renderer, *args, **kwargs)

Derived classes drawing method

findobj(match=None, include_self=True)

Find artist objects.

Recursively find all Artist instances contained in self.

match can be

  • None: return all objects contained in artist.
  • function with signature boolean = match(artist) used to filter matches
  • class instance: e.g., Line2D. Only return artists of class type.

If include_self is True (default), include self in the list to be checked for a match.

get_agg_filter()

return filter function to be used for agg filter

get_alpha()

Return the alpha value used for blending - not supported on all backends

get_animated()

Return the artist’s animated state

get_axes()

Return the Axes instance the artist resides in, or None

get_children()

Return a list of the child Artist`s this :class:`Artist contains.

get_clip_box()

Return artist clipbox

get_clip_on()

Return whether artist uses clipping

get_clip_path()

Return artist clip path

get_contains()

Return the _contains test used by the artist, or None for default.

get_figure()

Return the Figure instance the artist belongs to.

get_gid()

Returns the group id

get_label()

Get the label used for this artist in the legend.

get_path_effects()
get_picker()

Return the picker object used by this artist

get_rasterized()

return True if the artist is to be rasterized

get_sketch_params()

Returns the sketch parameters for the artist.

Returns:

sketch_params : tuple or None

A 3-tuple with the following elements: :

  • scale: The amplitude of the wiggle perpendicular to the source line.
  • length: The length of the wiggle along the line.
  • randomness: The scale factor by which the length is shrunken or expanded.

May return `None` if no sketch parameters were set. :

get_snap()

Returns the snap setting which may be:

  • True: snap vertices to the nearest pixel center
  • False: leave vertices as-is
  • None: (auto) If the path contains only rectilinear line segments, round to the nearest pixel center

Only supported by the Agg and MacOSX backends.

get_transform()

Return the Transform instance used by this artist.

get_transformed_clip_path_and_affine()

Return the clip path with the non-affine part of its transformation applied, and the remaining affine part of its transformation.

get_url()

Returns the url

get_visible()

Return the artist’s visiblity

get_window_extent(renderer)

Get the axes bounding box in display space. Subclasses should override for inclusion in the bounding box “tight” calculation. Default is to return an empty bounding box at 0, 0.

get_zorder()

Return the Artist‘s zorder.

have_units()

Return True if units are set on the x or y axes

hitlist(event)

List the children of the artist which contain the mouse event event.

is_figure_set()

Returns True if the artist is assigned to a Figure.

is_transform_set()

Returns True if Artist has a transform explicitly set.

pchanged()

Fire an event when property changed, calling all of the registered callbacks.

pick(mouseevent)

call signature:

pick(mouseevent)

each child artist will fire a pick event if mouseevent is over the artist and the artist has picker set

pickable()

Return True if Artist is pickable.

properties()

return a dictionary mapping property name -> value for all Artist props

remove()

Remove the artist from the figure if possible. The effect will not be visible until the figure is redrawn, e.g., with matplotlib.axes.Axes.draw_idle(). Call matplotlib.axes.Axes.relim() to update the axes limits if desired.

Note: relim() will not see collections even if the collection was added to axes with autolim = True.

Note: there is no support for removing the artist’s legend entry.

remove_callback(oid)

Remove a callback based on its id.

See also

add_callback()
For adding callbacks
set(**kwargs)

A tkstyle set command, pass kwargs to set properties

set_agg_filter(filter_func)

set agg_filter fuction.

set_alpha(alpha)

Set the alpha value used for blending - not supported on all backends.

ACCEPTS: float (0.0 transparent through 1.0 opaque)

set_animated(b)

Set the artist’s animation state.

ACCEPTS: [True | False]

set_axes(axes)

Set the Axes instance in which the artist resides, if any.

ACCEPTS: an Axes instance

set_clip_box(clipbox)

Set the artist’s clip Bbox.

ACCEPTS: a matplotlib.transforms.Bbox instance

set_clip_on(b)

Set whether artist uses clipping.

ACCEPTS: [True | False]

set_clip_path(path, transform=None)

Set the artist’s clip path, which may be:

  • a Patch (or subclass) instance

  • a Path instance, in which case

    an optional Transform instance may be provided, which will be applied to the path before using it for clipping.

  • None, to remove the clipping path

For efficiency, if the path happens to be an axis-aligned rectangle, this method will set the clipping box to the corresponding rectangle and set the clipping path to None.

ACCEPTS: [ (Path, Transform) | Patch | None ]

set_contains(picker)

Replace the contains test used by this artist. The new picker should be a callable function which determines whether the artist is hit by the mouse event:

hit, props = picker(artist, mouseevent)

If the mouse event is over the artist, return hit = True and props is a dictionary of properties you want returned with the contains test.

ACCEPTS: a callable function

set_figure(fig)

Set the Figure instance the artist belongs to.

ACCEPTS: a matplotlib.figure.Figure instance

set_gid(gid)

Sets the (group) id for the artist

ACCEPTS: an id string

set_label(s)

Set the label to s for auto legend.

ACCEPTS: string or anything printable with ‘%s’ conversion.

set_lod(on)

Set Level of Detail on or off. If on, the artists may examine things like the pixel width of the axes and draw a subset of their contents accordingly

ACCEPTS: [True | False]

set_path_effects(path_effects)

set path_effects, which should be a list of instances of matplotlib.patheffect._Base class or its derivatives.

set_picker(picker)

Set the epsilon for picking used by this artist

picker can be one of the following:

  • None: picking is disabled for this artist (default)

  • A boolean: if True then picking will be enabled and the artist will fire a pick event if the mouse event is over the artist

  • A float: if picker is a number it is interpreted as an epsilon tolerance in points and the artist will fire off an event if it’s data is within epsilon of the mouse event. For some artists like lines and patch collections, the artist may provide additional data to the pick event that is generated, e.g., the indices of the data within epsilon of the pick event

  • A function: if picker is callable, it is a user supplied function which determines whether the artist is hit by the mouse event:

    hit, props = picker(artist, mouseevent)


    to determine the hit test. if the mouse event is over the artist, return hit=True and props is a dictionary of properties you want added to the PickEvent attributes.

ACCEPTS: [None|float|boolean|callable]

set_rasterized(rasterized)

Force rasterized (bitmap) drawing in vector backend output.

Defaults to None, which implies the backend’s default behavior

ACCEPTS: [True | False | None]

set_sketch_params(scale=None, length=None, randomness=None)

Sets the the sketch parameters.

Parameters:

scale : float, optional

The amplitude of the wiggle perpendicular to the source line, in pixels. If scale is None, or not provided, no sketch filter will be provided.

length : float, optional

The length of the wiggle along the line, in pixels (default 128.0)

randomness : float, optional

The scale factor by which the length is shrunken or expanded (default 16.0)

set_snap(snap)

Sets the snap setting which may be:

  • True: snap vertices to the nearest pixel center
  • False: leave vertices as-is
  • None: (auto) If the path contains only rectilinear line segments, round to the nearest pixel center

Only supported by the Agg and MacOSX backends.

set_transform(t)

Set the Transform instance used by this artist.

ACCEPTS: Transform instance

set_url(url)

Sets the url for the artist

ACCEPTS: a url string

set_visible(b)

Set the artist’s visiblity.

ACCEPTS: [True | False]

set_zorder(level)

Set the zorder for the artist. Artists with lower zorder values are drawn first.

ACCEPTS: any number

update(props)

Update the properties of this Artist from the dictionary prop.

update_from(other)

Copy properties from other to self.

zorder = 0
class matplotlib.artist.ArtistInspector(o)

A helper class to inspect an Artist and return information about it’s settable properties and their current values.

Initialize the artist inspector with an Artist or sequence of Artists. If a sequence is used, we assume it is a homogeneous sequence (all Artists are of the same type) and it is your responsibility to make sure this is so.

aliased_name(s)

return ‘PROPNAME or alias’ if s has an alias, else return PROPNAME.

e.g., for the line markerfacecolor property, which has an alias, return ‘markerfacecolor or mfc’ and for the transform property, which does not, return ‘transform’

aliased_name_rest(s, target)

return ‘PROPNAME or alias’ if s has an alias, else return PROPNAME formatted for ReST

e.g., for the line markerfacecolor property, which has an alias, return ‘markerfacecolor or mfc’ and for the transform property, which does not, return ‘transform’

findobj(match=None)

Recursively find all matplotlib.artist.Artist instances contained in self.

If match is not None, it can be

  • function with signature boolean = match(artist)
  • class instance: e.g., Line2D

used to filter matches.

get_aliases()

Get a dict mapping fullname -> alias for each alias in the ArtistInspector.

e.g., for lines:

{'markerfacecolor': 'mfc',
 'linewidth'      : 'lw',
}
get_setters()

Get the attribute strings with setters for object. e.g., for a line, return ['markerfacecolor', 'linewidth', ....].

get_valid_values(attr)

Get the legal arguments for the setter associated with attr.

This is done by querying the docstring of the function set_attr for a line that begins with ACCEPTS:

e.g., for a line linestyle, return “[ '-' | '--' | '-.' | ':' | 'steps' | 'None' ]”

is_alias(o)

Return True if method object o is an alias for another function.

pprint_getters()

Return the getters and actual values as list of strings.

pprint_setters(prop=None, leadingspace=2)

If prop is None, return a list of strings of all settable properies and their valid values.

If prop is not None, it is a valid property name and that property will be returned as a string of property : valid values.

pprint_setters_rest(prop=None, leadingspace=2)

If prop is None, return a list of strings of all settable properies and their valid values. Format the output for ReST

If prop is not None, it is a valid property name and that property will be returned as a string of property : valid values.

properties()

return a dictionary mapping property name -> value

matplotlib.artist.allow_rasterization(draw)

Decorator for Artist.draw method. Provides routines that run before and after the draw call. The before and after functions are useful for changing artist-dependant renderer attributes or making other setup function calls, such as starting and flushing a mixed-mode renderer.

matplotlib.artist.get(obj, property=None)

Return the value of object’s property. property is an optional string for the property you want to return

Example usage:

getp(obj)  # get all the object properties
getp(obj, 'linestyle')  # get the linestyle property

obj is a Artist instance, e.g., Line2D or an instance of a Axes or matplotlib.text.Text. If the property is ‘somename’, this function returns

obj.get_somename()

getp() can be used to query all the gettable properties with getp(obj). Many properties have aliases for shorter typing, e.g. ‘lw’ is an alias for ‘linewidth’. In the output, aliases and full property names will be listed as:

property or alias = value

e.g.:

linewidth or lw = 2
matplotlib.artist.getp(obj, property=None)

Return the value of object’s property. property is an optional string for the property you want to return

Example usage:

getp(obj)  # get all the object properties
getp(obj, 'linestyle')  # get the linestyle property

obj is a Artist instance, e.g., Line2D or an instance of a Axes or matplotlib.text.Text. If the property is ‘somename’, this function returns

obj.get_somename()

getp() can be used to query all the gettable properties with getp(obj). Many properties have aliases for shorter typing, e.g. ‘lw’ is an alias for ‘linewidth’. In the output, aliases and full property names will be listed as:

property or alias = value

e.g.:

linewidth or lw = 2
matplotlib.artist.kwdoc(a)
matplotlib.artist.setp(obj, *args, **kwargs)

Set a property on an artist object.

matplotlib supports the use of setp() (“set property”) and getp() to set and get object properties, as well as to do introspection on the object. For example, to set the linestyle of a line to be dashed, you can do:

>>> line, = plot([1,2,3])
>>> setp(line, linestyle='--')

If you want to know the valid types of arguments, you can provide the name of the property you want to set without a value:

>>> setp(line, 'linestyle')
    linestyle: [ '-' | '--' | '-.' | ':' | 'steps' | 'None' ]

If you want to see all the properties that can be set, and their possible values, you can do:

>>> setp(line)
    ... long output listing omitted

setp() operates on a single instance or a list of instances. If you are in query mode introspecting the possible values, only the first instance in the sequence is used. When actually setting values, all the instances will be set. e.g., suppose you have a list of two lines, the following will make both lines thicker and red:

>>> x = arange(0,1.0,0.01)
>>> y1 = sin(2*pi*x)
>>> y2 = sin(4*pi*x)
>>> lines = plot(x, y1, x, y2)
>>> setp(lines, linewidth=2, color='r')

setp() works with the MATLAB style string/value pairs or with python kwargs. For example, the following are equivalent:

>>> setp(lines, 'linewidth', 2, 'color', 'r')  # MATLAB style
>>> setp(lines, linewidth=2, color='r')        # python style

matplotlib.lines

This module contains all the 2D line class which can draw with a variety of line styles, markers and colors.

class matplotlib.lines.Line2D(xdata, ydata, linewidth=None, linestyle=None, color=None, marker=None, markersize=None, markeredgewidth=None, markeredgecolor=None, markerfacecolor=None, markerfacecoloralt='none', fillstyle='full', antialiased=None, dash_capstyle=None, solid_capstyle=None, dash_joinstyle=None, solid_joinstyle=None, pickradius=5, drawstyle=None, markevery=None, **kwargs)

Bases: matplotlib.artist.Artist

A line - the line can have both a solid linestyle connecting all the vertices, and a marker at each vertex. Additionally, the drawing of the solid line is influenced by the drawstyle, eg one can create “stepped” lines in various styles.

Create a Line2D instance with x and y data in sequences xdata, ydata.

The kwargs are Line2D properties:

Property Description
agg_filter unknown
alpha float (0.0 transparent through 1.0 opaque)
animated [True | False]
antialiased or aa [True | False]
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color or c any matplotlib color
contains a callable function
dash_capstyle [‘butt’ | ‘round’ | ‘projecting’]
dash_joinstyle [‘miter’ | ‘round’ | ‘bevel’]
dashes sequence of on/off ink in points
drawstyle [‘default’ | ‘steps’ | ‘steps-pre’ | ‘steps-mid’ | ‘steps-post’]
figure a matplotlib.figure.Figure instance
fillstyle [‘full’ | ‘left’ | ‘right’ | ‘bottom’ | ‘top’ | ‘none’]
gid an id string
label string or anything printable with ‘%s’ conversion.
linestyle or ls ['-' | '--' | '-.' | ':' | 'None' | ' ' | ''] and any drawstyle in combination with a linestyle, e.g., 'steps--'.
linewidth or lw float value in points
lod [True | False]
marker unknown
markeredgecolor or mec any matplotlib color
markeredgewidth or mew float value in points
markerfacecolor or mfc any matplotlib color
markerfacecoloralt or mfcalt any matplotlib color
markersize or ms float
markevery None | integer | (startind, stride)
path_effects unknown
picker float distance in points or callable pick function fn(artist, event)
pickradius float distance in points
rasterized [True | False | None]
sketch_params unknown
snap unknown
solid_capstyle [‘butt’ | ‘round’ | ‘projecting’]
solid_joinstyle [‘miter’ | ‘round’ | ‘bevel’]
transform a matplotlib.transforms.Transform instance
url a url string
visible [True | False]
xdata 1D array
ydata 1D array
zorder any number

See set_linestyle() for a decription of the line styles, set_marker() for a description of the markers, and set_drawstyle() for a description of the draw styles.

contains(mouseevent)

Test whether the mouse event occurred on the line. The pick radius determines the precision of the location test (usually within five points of the value). Use get_pickradius() or set_pickradius() to view or modify it.

Returns True if any values are within the radius along with {'ind': pointlist}, where pointlist is the set of points within the radius.

TODO: sort returned indices by distance

draw(artist, renderer, *args, **kwargs)

draw the Line with renderer unless visiblity is False

drawStyleKeys = ['default', 'steps-mid', 'steps-pre', 'steps-post', 'steps']
drawStyles = {'default': '_draw_lines', 'steps-mid': '_draw_steps_mid', 'steps': '_draw_steps_pre', 'steps-pre': '_draw_steps_pre', 'steps-post': '_draw_steps_post'}
fillStyles = ('full', 'left', 'right', 'bottom', 'top', 'none')
filled_markers = ('o', 'v', '^', '<', '>', '8', 's', 'p', '*', 'h', 'H', 'D', 'd')
get_aa()

alias for get_antialiased

get_antialiased()
get_c()

alias for get_color

get_color()
get_dash_capstyle()

Get the cap style for dashed linestyles

get_dash_joinstyle()

Get the join style for dashed linestyles

get_data(orig=True)

Return the xdata, ydata.

If orig is True, return the original data.

get_drawstyle()
get_fillstyle()

return the marker fillstyle

get_linestyle()
get_linewidth()
get_ls()

alias for get_linestyle

get_lw()

alias for get_linewidth

get_marker()
get_markeredgecolor()
get_markeredgewidth()
get_markerfacecolor()
get_markerfacecoloralt()
get_markersize()
get_markevery()

return the markevery setting

get_mec()

alias for get_markeredgecolor

get_mew()

alias for get_markeredgewidth

get_mfc()

alias for get_markerfacecolor

get_mfcalt(alt=False)

alias for get_markerfacecoloralt

get_ms()

alias for get_markersize

get_path()

Return the Path object associated with this line.

get_pickradius()

return the pick radius used for containment tests

get_solid_capstyle()

Get the cap style for solid linestyles

get_solid_joinstyle()

Get the join style for solid linestyles

get_window_extent(renderer)
get_xdata(orig=True)

Return the xdata.

If orig is True, return the original data, else the processed data.

get_xydata()

Return the xy data as a Nx2 numpy array.

get_ydata(orig=True)

Return the ydata.

If orig is True, return the original data, else the processed data.

is_dashed()

return True if line is dashstyle

lineStyles = {'': '_draw_nothing', ' ': '_draw_nothing', 'None': '_draw_nothing', '--': '_draw_dashed', '-.': '_draw_dash_dot', '-': '_draw_solid', ':': '_draw_dotted'}
markers = {0: 'tickleft', 1: 'tickright', 2: 'tickup', 3: 'tickdown', 4: 'caretleft', 'D': 'diamond', 6: 'caretup', 7: 'caretdown', 's': 'square', '|': 'vline', '': 'nothing', 'None': 'nothing', 'x': 'x', 5: 'caretright', '_': 'hline', '^': 'triangle_up', ' ': 'nothing', 'd': 'thin_diamond', 'h': 'hexagon1', '+': 'plus', '*': 'star', ',': 'pixel', 'o': 'circle', '.': 'point', '1': 'tri_down', 'p': 'pentagon', '3': 'tri_left', '2': 'tri_up', '4': 'tri_right', 'H': 'hexagon2', 'v': 'triangle_down', '8': 'octagon', '<': 'triangle_left', None: 'nothing', '>': 'triangle_right'}
recache(always=False)
recache_always()
set_aa(val)

alias for set_antialiased

set_antialiased(b)

True if line should be drawin with antialiased rendering

ACCEPTS: [True | False]

set_axes(ax)

Set the Axes instance in which the artist resides, if any.

ACCEPTS: an Axes instance

set_c(val)

alias for set_color

set_color(color)

Set the color of the line

ACCEPTS: any matplotlib color

set_dash_capstyle(s)

Set the cap style for dashed linestyles

ACCEPTS: [‘butt’ | ‘round’ | ‘projecting’]

set_dash_joinstyle(s)

Set the join style for dashed linestyles ACCEPTS: [‘miter’ | ‘round’ | ‘bevel’]

set_dashes(seq)

Set the dash sequence, sequence of dashes with on off ink in points. If seq is empty or if seq = (None, None), the linestyle will be set to solid.

ACCEPTS: sequence of on/off ink in points

set_data(*args)

Set the x and y data

ACCEPTS: 2D array (rows are x, y) or two 1D arrays

set_drawstyle(drawstyle)

Set the drawstyle of the plot

‘default’ connects the points with lines. The steps variants produce step-plots. ‘steps’ is equivalent to ‘steps-pre’ and is maintained for backward-compatibility.

ACCEPTS: [‘default’ | ‘steps’ | ‘steps-pre’ | ‘steps-mid’ |
‘steps-post’]
set_fillstyle(fs)

Set the marker fill style; ‘full’ means fill the whole marker. ‘none’ means no filling; other options are for half-filled markers.

ACCEPTS: [‘full’ | ‘left’ | ‘right’ | ‘bottom’ | ‘top’ | ‘none’]

set_linestyle(linestyle)

Set the linestyle of the line (also accepts drawstyles)

linestyle description
'-' solid
'--' dashed
'-.' dash_dot
':' dotted
'None' draw nothing
' ' draw nothing
'' draw nothing

‘steps’ is equivalent to ‘steps-pre’ and is maintained for backward-compatibility.

See also

set_drawstyle()
To set the drawing style (stepping) of the plot.
ACCEPTS: ['-' | '--' | '-.' | ':' | 'None' |
' ' | '']

and any drawstyle in combination with a linestyle, e.g., 'steps--'.

set_linewidth(w)

Set the line width in points

ACCEPTS: float value in points

set_ls(val)

alias for set_linestyle

set_lw(val)

alias for set_linewidth

set_marker(marker)

Set the line marker

Parameters:

marker: marker style :

See markers for full description of possible argument

set_markeredgecolor(ec)

Set the marker edge color

ACCEPTS: any matplotlib color

set_markeredgewidth(ew)

Set the marker edge width in points

ACCEPTS: float value in points

set_markerfacecolor(fc)

Set the marker face color.

ACCEPTS: any matplotlib color

set_markerfacecoloralt(fc)

Set the alternate marker face color.

ACCEPTS: any matplotlib color

set_markersize(sz)

Set the marker size in points

ACCEPTS: float

set_markevery(every)

Set the markevery property to subsample the plot when using markers. e.g., if markevery=5, every 5-th marker will be plotted. every can be

None
Every point will be plotted
an integer N
Every N-th marker will be plotted starting with marker 0
A length-2 tuple of integers
every=(start, N) will start at point start and plot every N-th marker

ACCEPTS: None | integer | (startind, stride)

set_mec(val)

alias for set_markeredgecolor

set_mew(val)

alias for set_markeredgewidth

set_mfc(val)

alias for set_markerfacecolor

set_mfcalt(val)

alias for set_markerfacecoloralt

set_ms(val)

alias for set_markersize

set_picker(p)

Sets the event picker details for the line.

ACCEPTS: float distance in points or callable pick function fn(artist, event)

set_pickradius(d)

Sets the pick radius used for containment tests

ACCEPTS: float distance in points

set_solid_capstyle(s)

Set the cap style for solid linestyles

ACCEPTS: [‘butt’ | ‘round’ | ‘projecting’]

set_solid_joinstyle(s)

Set the join style for solid linestyles ACCEPTS: [‘miter’ | ‘round’ | ‘bevel’]

set_transform(t)

set the Transformation instance used by this artist

ACCEPTS: a matplotlib.transforms.Transform instance

set_xdata(x)

Set the data np.array for x

ACCEPTS: 1D array

set_ydata(y)

Set the data np.array for y

ACCEPTS: 1D array

update_from(other)

copy properties from other to self

validCap = ('butt', 'round', 'projecting')
validJoin = ('miter', 'round', 'bevel')
zorder = 2
class matplotlib.lines.VertexSelector(line)

Manage the callbacks to maintain a list of selected vertices for matplotlib.lines.Line2D. Derived classes should override process_selected() to do something with the picks.

Here is an example which highlights the selected verts with red circles:

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.lines as lines

class HighlightSelected(lines.VertexSelector):
    def __init__(self, line, fmt='ro', **kwargs):
        lines.VertexSelector.__init__(self, line)
        self.markers, = self.axes.plot([], [], fmt, **kwargs)

    def process_selected(self, ind, xs, ys):
        self.markers.set_data(xs, ys)
        self.canvas.draw()

fig = plt.figure()
ax = fig.add_subplot(111)
x, y = np.random.rand(2, 30)
line, = ax.plot(x, y, 'bs-', picker=5)

selector = HighlightSelected(line)
plt.show()

Initialize the class with a matplotlib.lines.Line2D instance. The line should already be added to some matplotlib.axes.Axes instance and should have the picker property set.

onpick(event)

When the line is picked, update the set of selected indicies.

process_selected(ind, xs, ys)

Default “do nothing” implementation of the process_selected() method.

ind are the indices of the selected vertices. xs and ys are the coordinates of the selected vertices.

matplotlib.lines.segment_hits(cx, cy, x, y, radius)

Determine if any line segments are within radius of a point. Returns the list of line segments that are within that radius.

matplotlib.patches

class matplotlib.patches.Arc(xy, width, height, angle=0.0, theta1=0.0, theta2=360.0, **kwargs)

Bases: matplotlib.patches.Ellipse

An elliptical arc. Because it performs various optimizations, it can not be filled.

The arc must be used in an Axes instance—it can not be added directly to a Figure—because it is optimized to only render the segments that are inside the axes bounding box with high resolution.

The following args are supported:

xy
center of ellipse
width
length of horizontal axis
height
length of vertical axis
angle
rotation in degrees (anti-clockwise)
theta1
starting angle of the arc in degrees
theta2
ending angle of the arc in degrees

If theta1 and theta2 are not provided, the arc will form a complete ellipse.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
draw(artist, renderer, *args, **kwargs)

Ellipses are normally drawn using an approximation that uses eight cubic bezier splines. The error of this approximation is 1.89818e-6, according to this unverified source:

Lancaster, Don. Approximating a Circle or an Ellipse Using Four Bezier Cubic Splines.

http://www.tinaja.com/glib/ellipse4.pdf

There is a use case where very large ellipses must be drawn with very high accuracy, and it is too expensive to render the entire ellipse with enough segments (either splines or line segments). Therefore, in the case where either radius of the ellipse is large enough that the error of the spline approximation will be visible (greater than one pixel offset from the ideal), a different technique is used.

In that case, only the visible parts of the ellipse are drawn, with each visible arc using a fixed number of spline segments (8). The algorithm proceeds as follows:

  1. The points where the ellipse intersects the axes bounding box are located. (This is done be performing an inverse transformation on the axes bbox such that it is relative to the unit circle – this makes the intersection calculation much easier than doing rotated ellipse intersection directly).

    This uses the “line intersecting a circle” algorithm from:

    Vince, John. Geometry for Computer Graphics: Formulae, Examples & Proofs. London: Springer-Verlag, 2005.

  2. The angles of each of the intersection points are calculated.

  3. Proceeding counterclockwise starting in the positive x-direction, each of the visible arc-segments between the pairs of vertices are drawn using the bezier arc approximation technique implemented in matplotlib.path.Path.arc().

class matplotlib.patches.Arrow(x, y, dx, dy, width=1.0, **kwargs)

Bases: matplotlib.patches.Patch

An arrow patch.

Draws an arrow, starting at (x, y), direction and length given by (dx, dy) the width of the arrow is scaled by width.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
get_patch_transform()
get_path()
class matplotlib.patches.ArrowStyle

Bases: matplotlib.patches._Style

ArrowStyle is a container class which defines several arrowstyle classes, which is used to create an arrow path along a given path. These are mainly used with FancyArrowPatch.

A arrowstyle object can be either created as:

ArrowStyle.Fancy(head_length=.4, head_width=.4, tail_width=.4)

or:

ArrowStyle("Fancy", head_length=.4, head_width=.4, tail_width=.4)

or:

ArrowStyle("Fancy, head_length=.4, head_width=.4, tail_width=.4")

The following classes are defined

Class Name Attrs
Curve - None
CurveB -> head_length=0.4,head_width=0.2
BracketB -[ widthB=1.0,lengthB=0.2,angleB=None
CurveFilledB -|> head_length=0.4,head_width=0.2
CurveA <- head_length=0.4,head_width=0.2
CurveAB <-> head_length=0.4,head_width=0.2
CurveFilledA <|- head_length=0.4,head_width=0.2
CurveFilledAB <|-|> head_length=0.4,head_width=0.2
BracketA ]- widthA=1.0,lengthA=0.2,angleA=None
BracketAB ]-[ widthA=1.0,lengthA=0.2,angleA=None,widthB=1.0,lengthB=0.2,angleB=None
Fancy fancy head_length=0.4,head_width=0.4,tail_width=0.4
Simple simple head_length=0.5,head_width=0.5,tail_width=0.2
Wedge wedge tail_width=0.3,shrink_factor=0.5
BarAB |-| widthA=1.0,angleA=None,widthB=1.0,angleB=None

An instance of any arrow style class is an callable object, whose call signature is:

__call__(self, path, mutation_size, linewidth, aspect_ratio=1.)

and it returns a tuple of a Path instance and a boolean value. path is a Path instance along witch the arrow will be drawn. mutation_size and aspect_ratio has a same meaning as in BoxStyle. linewidth is a line width to be stroked. This is meant to be used to correct the location of the head so that it does not overshoot the destination point, but not all classes support it.

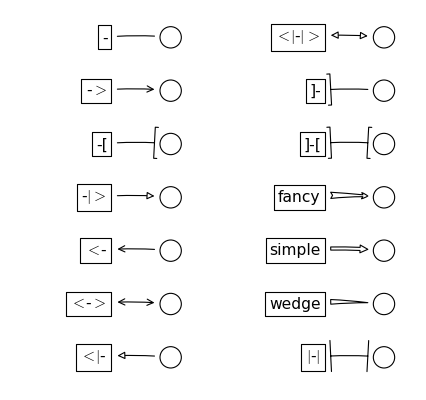

(Source code, png)

../_images/fancyarrow_demo.png
class BarAB(widthA=1.0, angleA=None, widthB=1.0, angleB=None)

Bases: matplotlib.patches._Bracket

An arrow with a bar(|) at both ends.

widthA
width of the bracket
lengthA
length of the bracket
angleA
angle between the bracket and the line
widthB
width of the bracket
lengthB
length of the bracket
angleB
angle between the bracket and the line
class ArrowStyle.BracketA(widthA=1.0, lengthA=0.2, angleA=None)

Bases: matplotlib.patches._Bracket

An arrow with a bracket(]) at its end.

widthA
width of the bracket
lengthA
length of the bracket
angleA
angle between the bracket and the line
class ArrowStyle.BracketAB(widthA=1.0, lengthA=0.2, angleA=None, widthB=1.0, lengthB=0.2, angleB=None)

Bases: matplotlib.patches._Bracket

An arrow with a bracket(]) at both ends.

widthA
width of the bracket
lengthA
length of the bracket
angleA
angle between the bracket and the line
widthB
width of the bracket
lengthB
length of the bracket
angleB
angle between the bracket and the line
class ArrowStyle.BracketB(widthB=1.0, lengthB=0.2, angleB=None)

Bases: matplotlib.patches._Bracket

An arrow with a bracket([) at its end.

widthB
width of the bracket
lengthB
length of the bracket
angleB
angle between the bracket and the line
class ArrowStyle.Curve

Bases: matplotlib.patches._Curve

A simple curve without any arrow head.

class ArrowStyle.CurveA(head_length=0.4, head_width=0.2)

Bases: matplotlib.patches._Curve

An arrow with a head at its begin point.

head_length
length of the arrow head
head_width
width of the arrow head
class ArrowStyle.CurveAB(head_length=0.4, head_width=0.2)

Bases: matplotlib.patches._Curve

An arrow with heads both at the begin and the end point.

head_length
length of the arrow head
head_width
width of the arrow head
class ArrowStyle.CurveB(head_length=0.4, head_width=0.2)

Bases: matplotlib.patches._Curve

An arrow with a head at its end point.

head_length
length of the arrow head
head_width
width of the arrow head
class ArrowStyle.CurveFilledA(head_length=0.4, head_width=0.2)

Bases: matplotlib.patches._Curve

An arrow with filled triangle head at the begin.

head_length
length of the arrow head
head_width
width of the arrow head
class ArrowStyle.CurveFilledAB(head_length=0.4, head_width=0.2)

Bases: matplotlib.patches._Curve

An arrow with filled triangle heads both at the begin and the end point.

head_length
length of the arrow head
head_width
width of the arrow head
class ArrowStyle.CurveFilledB(head_length=0.4, head_width=0.2)

Bases: matplotlib.patches._Curve

An arrow with filled triangle head at the end.

head_length
length of the arrow head
head_width
width of the arrow head
class ArrowStyle.Fancy(head_length=0.4, head_width=0.4, tail_width=0.4)

Bases: matplotlib.patches._Base

A fancy arrow. Only works with a quadratic bezier curve.

head_length
length of the arrow head
head_with
width of the arrow head
tail_width
width of the arrow tail
transmute(path, mutation_size, linewidth)
class ArrowStyle.Simple(head_length=0.5, head_width=0.5, tail_width=0.2)

Bases: matplotlib.patches._Base

A simple arrow. Only works with a quadratic bezier curve.

head_length
length of the arrow head
head_with
width of the arrow head
tail_width
width of the arrow tail
transmute(path, mutation_size, linewidth)
class ArrowStyle.Wedge(tail_width=0.3, shrink_factor=0.5)

Bases: matplotlib.patches._Base

Wedge(?) shape. Only wokrs with a quadratic bezier curve. The begin point has a width of the tail_width and the end point has a width of 0. At the middle, the width is shrink_factor*tail_width.

tail_width
width of the tail
shrink_factor
fraction of the arrow width at the middle point
transmute(path, mutation_size, linewidth)
class matplotlib.patches.BoxStyle

Bases: matplotlib.patches._Style

BoxStyle is a container class which defines several boxstyle classes, which are used for FancyBoxPatch.

A style object can be created as:

BoxStyle.Round(pad=0.2)

or:

BoxStyle("Round", pad=0.2)

or:

BoxStyle("Round, pad=0.2")

Following boxstyle classes are defined.

Class Name Attrs
LArrow larrow pad=0.3
RArrow rarrow pad=0.3
Round round pad=0.3,rounding_size=None
Round4 round4 pad=0.3,rounding_size=None
Roundtooth roundtooth pad=0.3,tooth_size=None
Sawtooth sawtooth pad=0.3,tooth_size=None
Square square pad=0.3

An instance of any boxstyle class is an callable object, whose call signature is:

__call__(self, x0, y0, width, height, mutation_size, aspect_ratio=1.)

and returns a Path instance. x0, y0, width and height specify the location and size of the box to be drawn. mutation_scale determines the overall size of the mutation (by which I mean the transformation of the rectangle to the fancy box). mutation_aspect determines the aspect-ratio of the mutation.

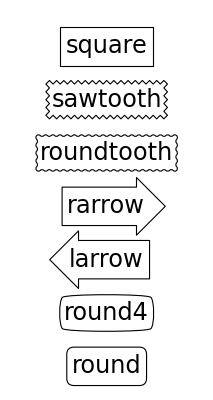

(Source code, png)

../_images/fancybox_demo2.png
class LArrow(pad=0.3)

Bases: matplotlib.patches._Base

(left) Arrow Box

transmute(x0, y0, width, height, mutation_size)
class BoxStyle.RArrow(pad=0.3)

Bases: matplotlib.patches.LArrow

(right) Arrow Box

transmute(x0, y0, width, height, mutation_size)
class BoxStyle.Round(pad=0.3, rounding_size=None)

Bases: matplotlib.patches._Base

A box with round corners.

pad
amount of padding
rounding_size
rounding radius of corners. pad if None
transmute(x0, y0, width, height, mutation_size)
class BoxStyle.Round4(pad=0.3, rounding_size=None)

Bases: matplotlib.patches._Base

Another box with round edges.

pad
amount of padding
rounding_size
rounding size of edges. pad if None
transmute(x0, y0, width, height, mutation_size)
class BoxStyle.Roundtooth(pad=0.3, tooth_size=None)

Bases: matplotlib.patches.Sawtooth

A roundtooth(?) box.

pad
amount of padding
tooth_size
size of the sawtooth. pad* if None
transmute(x0, y0, width, height, mutation_size)
class BoxStyle.Sawtooth(pad=0.3, tooth_size=None)

Bases: matplotlib.patches._Base

A sawtooth box.

pad
amount of padding
tooth_size
size of the sawtooth. pad* if None
transmute(x0, y0, width, height, mutation_size)
class BoxStyle.Square(pad=0.3)

Bases: matplotlib.patches._Base

A simple square box.

pad amount of padding

transmute(x0, y0, width, height, mutation_size)
class matplotlib.patches.Circle(xy, radius=5, **kwargs)

Bases: matplotlib.patches.Ellipse

A circle patch.

Create true circle at center xy = (x, y) with given radius. Unlike CirclePolygon which is a polygonal approximation, this uses Bézier splines and is much closer to a scale-free circle.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
get_radius()

return the radius of the circle

radius

return the radius of the circle

set_radius(radius)

Set the radius of the circle

ACCEPTS: float

class matplotlib.patches.CirclePolygon(xy, radius=5, resolution=20, **kwargs)

Bases: matplotlib.patches.RegularPolygon

A polygon-approximation of a circle patch.

Create a circle at xy = (x, y) with given radius. This circle is approximated by a regular polygon with resolution sides. For a smoother circle drawn with splines, see Circle.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
class matplotlib.patches.ConnectionPatch(xyA, xyB, coordsA, coordsB=None, axesA=None, axesB=None, arrowstyle='-', arrow_transmuter=None, connectionstyle='arc3', connector=None, patchA=None, patchB=None, shrinkA=0.0, shrinkB=0.0, mutation_scale=10.0, mutation_aspect=None, clip_on=False, dpi_cor=1.0, **kwargs)

Bases: matplotlib.patches.FancyArrowPatch

A ConnectionPatch class is to make connecting lines between two points (possibly in different axes).

Connect point xyA in coordsA with point xyB in coordsB

Valid keys are

Key Description
arrowstyle the arrow style
connectionstyle the connection style
relpos default is (0.5, 0.5)
patchA default is bounding box of the text
patchB default is None
shrinkA default is 2 points
shrinkB default is 2 points
mutation_scale default is text size (in points)
mutation_aspect default is 1.
? any key for matplotlib.patches.PathPatch

coordsA and coordsB are strings that indicate the coordinates of xyA and xyB.

Property Description
‘figure points’ points from the lower left corner of the figure
‘figure pixels’ pixels from the lower left corner of the figure
‘figure fraction’ 0,0 is lower left of figure and 1,1 is upper, right
‘axes points’ points from lower left corner of axes
‘axes pixels’ pixels from lower left corner of axes
‘axes fraction’ 0,1 is lower left of axes and 1,1 is upper right
‘data’ use the coordinate system of the object being annotated (default)
‘offset points’ Specify an offset (in points) from the xy value
‘polar’ you can specify theta, r for the annotation, even in cartesian plots. Note that if you are using a polar axes, you do not need to specify polar for the coordinate system since that is the native “data” coordinate system.
draw(renderer)

Draw.

get_annotation_clip()

Return annotation_clip attribute. See set_annotation_clip() for the meaning of return values.

get_path_in_displaycoord()

Return the mutated path of the arrow in the display coord

set_annotation_clip(b)

set annotation_clip attribute.

  • True: the annotation will only be drawn when self.xy is inside the

    axes.

  • False: the annotation will always be drawn regardless of its

    position.

  • None: the self.xy will be checked only if xycoords is “data”

class matplotlib.patches.ConnectionStyle

Bases: matplotlib.patches._Style

ConnectionStyle is a container class which defines several connectionstyle classes, which is used to create a path between two points. These are mainly used with FancyArrowPatch.

A connectionstyle object can be either created as:

ConnectionStyle.Arc3(rad=0.2)

or:

ConnectionStyle("Arc3", rad=0.2)

or:

ConnectionStyle("Arc3, rad=0.2")

The following classes are defined

Class Name Attrs
Angle angle angleA=90,angleB=0,rad=0.0
Angle3 angle3 angleA=90,angleB=0
Arc arc angleA=0,angleB=0,armA=None,armB=None,rad=0.0
Arc3 arc3 rad=0.0
Bar bar armA=0.0,armB=0.0,fraction=0.3,angle=None

An instance of any connection style class is an callable object, whose call signature is:

__call__(self, posA, posB,
         patchA=None, patchB=None,
         shrinkA=2., shrinkB=2.)

and it returns a Path instance. posA and posB are tuples of x,y coordinates of the two points to be connected. patchA (or patchB) is given, the returned path is clipped so that it start (or end) from the boundary of the patch. The path is further shrunk by shrinkA (or shrinkB) which is given in points.

class Angle(angleA=90, angleB=0, rad=0.0)

Bases: matplotlib.patches._Base

Creates a picewise continuous quadratic bezier path between two points. The path has a one passing-through point placed at the intersecting point of two lines which crosses the start (or end) point and has a angle of angleA (or angleB). The connecting edges are rounded with rad.

angleA
starting angle of the path
angleB
ending angle of the path
rad
rounding radius of the edge
connect(posA, posB)
class ConnectionStyle.Angle3(angleA=90, angleB=0)

Bases: matplotlib.patches._Base

Creates a simple quadratic bezier curve between two points. The middle control points is placed at the intersecting point of two lines which crosses the start (or end) point and has a angle of angleA (or angleB).

angleA
starting angle of the path
angleB
ending angle of the path
connect(posA, posB)
class ConnectionStyle.Arc(angleA=0, angleB=0, armA=None, armB=None, rad=0.0)

Bases: matplotlib.patches._Base

Creates a picewise continuous quadratic bezier path between two points. The path can have two passing-through points, a point placed at the distance of armA and angle of angleA from point A, another point with respect to point B. The edges are rounded with rad.

angleA :
starting angle of the path
angleB :
ending angle of the path
armA :
length of the starting arm
armB :
length of the ending arm
rad :
rounding radius of the edges
connect(posA, posB)
class ConnectionStyle.Arc3(rad=0.0)

Bases: matplotlib.patches._Base

Creates a simple quadratic bezier curve between two points. The curve is created so that the middle contol points (C1) is located at the same distance from the start (C0) and end points(C2) and the distance of the C1 to the line connecting C0-C2 is rad times the distance of C0-C2.

rad curvature of the curve.

connect(posA, posB)
class ConnectionStyle.Bar(armA=0.0, armB=0.0, fraction=0.3, angle=None)

Bases: matplotlib.patches._Base

A line with angle between A and B with armA and armB. One of the arm is extend so that they are connected in a right angle. The length of armA is determined by (armA + fraction x AB distance). Same for armB.

armA : minimum length of armA

armB : minimum length of armB

fraction : a fraction of the distance between two points that
will be added to armA and armB.
angle : angle of the connecting line (if None, parallel to A
and B)
connect(posA, posB)
class matplotlib.patches.Ellipse(xy, width, height, angle=0.0, **kwargs)

Bases: matplotlib.patches.Patch

A scale-free ellipse.

xy
center of ellipse
width
total length (diameter) of horizontal axis
height
total length (diameter) of vertical axis
angle
rotation in degrees (anti-clockwise)

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
contains(ev)
get_patch_transform()
get_path()

Return the vertices of the rectangle

class matplotlib.patches.FancyArrow(x, y, dx, dy, width=0.001, length_includes_head=False, head_width=None, head_length=None, shape='full', overhang=0, head_starts_at_zero=False, **kwargs)

Bases: matplotlib.patches.Polygon

Like Arrow, but lets you set head width and head height independently.

Constructor arguments
width: float (default: 0.001)
width of full arrow tail
length_includes_head: [True | False] (default: False)
True if head is to be counted in calculating the length.
head_width: float or None (default: 3*width)
total width of the full arrow head
head_length: float or None (default: 1.5 * head_width)
length of arrow head
shape: [‘full’, ‘left’, ‘right’] (default: ‘full’)
draw the left-half, right-half, or full arrow
overhang: float (default: 0)
fraction that the arrow is swept back (0 overhang means triangular shape). Can be negative or greater than one.
head_starts_at_zero: [True | False] (default: False)
if True, the head starts being drawn at coordinate 0 instead of ending at coordinate 0.

Other valid kwargs (inherited from Patch) are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
class matplotlib.patches.FancyArrowPatch(posA=None, posB=None, path=None, arrowstyle='simple', arrow_transmuter=None, connectionstyle='arc3', connector=None, patchA=None, patchB=None, shrinkA=2.0, shrinkB=2.0, mutation_scale=1.0, mutation_aspect=None, dpi_cor=1.0, **kwargs)

Bases: matplotlib.patches.Patch

A fancy arrow patch. It draws an arrow using the :class:ArrowStyle.

If posA and posB is given, a path connecting two point are created according to the connectionstyle. The path will be clipped with patchA and patchB and further shirnked by shrinkA and shrinkB. An arrow is drawn along this resulting path using the arrowstyle parameter. If path provided, an arrow is drawn along this path and patchA, patchB, shrinkA, and shrinkB are ignored.

The connectionstyle describes how posA and posB are connected. It can be an instance of the ConnectionStyle class (matplotlib.patches.ConnectionStlye) or a string of the connectionstyle name, with optional comma-separated attributes. The following connection styles are available.

Class Name Attrs
Angle angle angleA=90,angleB=0,rad=0.0
Angle3 angle3 angleA=90,angleB=0
Arc arc angleA=0,angleB=0,armA=None,armB=None,rad=0.0
Arc3 arc3 rad=0.0
Bar bar armA=0.0,armB=0.0,fraction=0.3,angle=None

The arrowstyle describes how the fancy arrow will be drawn. It can be string of the available arrowstyle names, with optional comma-separated attributes, or one of the ArrowStyle instance. The optional attributes are meant to be scaled with the mutation_scale. The following arrow styles are available.

Class Name Attrs
Curve - None
CurveB -> head_length=0.4,head_width=0.2
BracketB -[ widthB=1.0,lengthB=0.2,angleB=None
CurveFilledB -|> head_length=0.4,head_width=0.2
CurveA <- head_length=0.4,head_width=0.2
CurveAB <-> head_length=0.4,head_width=0.2
CurveFilledA <|- head_length=0.4,head_width=0.2
CurveFilledAB <|-|> head_length=0.4,head_width=0.2
BracketA ]- widthA=1.0,lengthA=0.2,angleA=None
BracketAB ]-[ widthA=1.0,lengthA=0.2,angleA=None,widthB=1.0,lengthB=0.2,angleB=None
Fancy fancy head_length=0.4,head_width=0.4,tail_width=0.4
Simple simple head_length=0.5,head_width=0.5,tail_width=0.2
Wedge wedge tail_width=0.3,shrink_factor=0.5
BarAB |-| widthA=1.0,angleA=None,widthB=1.0,angleB=None
mutation_scale : a value with which attributes of arrowstyle
(e.g., head_length) will be scaled. default=1.
mutation_aspect : The height of the rectangle will be
squeezed by this value before the mutation and the mutated box will be stretched by the inverse of it. default=None.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
draw(renderer)
get_arrowstyle()

Return the arrowstyle object

get_connectionstyle()

Return the ConnectionStyle instance

get_dpi_cor()

dpi_cor is currently used for linewidth-related things and shink factor. Mutation scale is not affected by this.

get_mutation_aspect()

Return the aspect ratio of the bbox mutation.

get_mutation_scale()

Return the mutation scale.

get_path()

return the path of the arrow in the data coordinate. Use get_path_in_displaycoord() method to retrieve the arrow path in the display coord.

get_path_in_displaycoord()

Return the mutated path of the arrow in the display coord

set_arrowstyle(arrowstyle=None, **kw)

Set the arrow style.

arrowstyle can be a string with arrowstyle name with optional

comma-separated attributes. Alternatively, the attrs can be provided as keywords.

set_arrowstyle(“Fancy,head_length=0.2”) set_arrowstyle(“fancy”, head_length=0.2)

Old attrs simply are forgotten.

Without argument (or with arrowstyle=None), return available box styles as a list of strings.

set_connectionstyle(connectionstyle, **kw)

Set the connection style.

connectionstyle can be a string with connectionstyle name with

optional comma-separated attributes. Alternatively, the attrs can be probided as keywords.

set_connectionstyle(“arc,angleA=0,armA=30,rad=10”) set_connectionstyle(“arc”, angleA=0,armA=30,rad=10)

Old attrs simply are forgotten.

Without argument (or with connectionstyle=None), return available styles as a list of strings.

set_dpi_cor(dpi_cor)

dpi_cor is currently used for linewidth-related things and shink factor. Mutation scale is not affected by this.

set_mutation_aspect(aspect)

Set the aspect ratio of the bbox mutation.

ACCEPTS: float

set_mutation_scale(scale)

Set the mutation scale.

ACCEPTS: float

set_patchA(patchA)

set the begin patch.

set_patchB(patchB)

set the begin patch

set_positions(posA, posB)

set the begin end end positions of the connecting path. Use current vlaue if None.

class matplotlib.patches.FancyBboxPatch(xy, width, height, boxstyle='round', bbox_transmuter=None, mutation_scale=1.0, mutation_aspect=None, **kwargs)

Bases: matplotlib.patches.Patch

Draw a fancy box around a rectangle with lower left at xy*=(*x, y) with specified width and height.

FancyBboxPatch class is similar to Rectangle class, but it draws a fancy box around the rectangle. The transformation of the rectangle box to the fancy box is delegated to the BoxTransmuterBase and its derived classes.

xy = lower left corner

width, height

boxstyle determines what kind of fancy box will be drawn. It can be a string of the style name with a comma separated attribute, or an instance of BoxStyle. Following box styles are available.

Class Name Attrs
LArrow larrow pad=0.3
RArrow rarrow pad=0.3
Round round pad=0.3,rounding_size=None
Round4 round4 pad=0.3,rounding_size=None
Roundtooth roundtooth pad=0.3,tooth_size=None
Sawtooth sawtooth pad=0.3,tooth_size=None
Square square pad=0.3

mutation_scale : a value with which attributes of boxstyle (e.g., pad) will be scaled. default=1.

mutation_aspect : The height of the rectangle will be squeezed by this value before the mutation and the mutated box will be stretched by the inverse of it. default=None.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
get_bbox()
get_boxstyle()

Return the boxstyle object

get_height()

Return the height of the rectangle

get_mutation_aspect()

Return the aspect ratio of the bbox mutation.

get_mutation_scale()

Return the mutation scale.

get_path()

Return the mutated path of the rectangle

get_width()

Return the width of the rectangle

get_x()

Return the left coord of the rectangle

get_y()

Return the bottom coord of the rectangle

set_bounds(*args)

Set the bounds of the rectangle: l,b,w,h

ACCEPTS: (left, bottom, width, height)

set_boxstyle(boxstyle=None, **kw)

Set the box style.

boxstyle can be a string with boxstyle name with optional comma-separated attributes. Alternatively, the attrs can be provided as keywords:

set_boxstyle("round,pad=0.2")
set_boxstyle("round", pad=0.2)

Old attrs simply are forgotten.

Without argument (or with boxstyle = None), it returns available box styles.

set_height(h)

Set the width rectangle

ACCEPTS: float

set_mutation_aspect(aspect)

Set the aspect ratio of the bbox mutation.

ACCEPTS: float

set_mutation_scale(scale)

Set the mutation scale.

ACCEPTS: float

set_width(w)

Set the width rectangle

ACCEPTS: float

set_x(x)

Set the left coord of the rectangle

ACCEPTS: float

set_y(y)

Set the bottom coord of the rectangle

ACCEPTS: float

class matplotlib.patches.Patch(edgecolor=None, facecolor=None, color=None, linewidth=None, linestyle=None, antialiased=None, hatch=None, fill=True, **kwargs)

Bases: matplotlib.artist.Artist

A patch is a 2D artist with a face color and an edge color.

If any of edgecolor, facecolor, linewidth, or antialiased are None, they default to their rc params setting.

The following kwarg properties are supported

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
contains(mouseevent, radius=None)

Test whether the mouse event occurred in the patch.

Returns T/F, {}

contains_point(point, radius=None)

Returns True if the given point is inside the path (transformed with its transform attribute).

draw(artist, renderer, *args, **kwargs)

Draw the Patch to the given renderer.

fill

return whether fill is set

get_aa()

Returns True if the Patch is to be drawn with antialiasing.

get_antialiased()

Returns True if the Patch is to be drawn with antialiasing.

get_data_transform()

Return the Transform instance which maps data coordinates to physical coordinates.

get_ec()

Return the edge color of the Patch.

get_edgecolor()

Return the edge color of the Patch.

get_extents()

Return a Bbox object defining the axis-aligned extents of the Patch.

get_facecolor()

Return the face color of the Patch.

get_fc()

Return the face color of the Patch.

get_fill()

return whether fill is set

get_hatch()

Return the current hatching pattern

get_linestyle()

Return the linestyle. Will be one of [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]

get_linewidth()

Return the line width in points.

get_ls()

Return the linestyle. Will be one of [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]

get_lw()

Return the line width in points.

get_patch_transform()

Return the Transform instance which takes patch coordinates to data coordinates.

For example, one may define a patch of a circle which represents a radius of 5 by providing coordinates for a unit circle, and a transform which scales the coordinates (the patch coordinate) by 5.

get_path()

Return the path of this patch

get_transform()

Return the Transform applied to the Patch.

get_verts()

Return a copy of the vertices used in this patch

If the patch contains Bezier curves, the curves will be interpolated by line segments. To access the curves as curves, use get_path().

get_window_extent(renderer=None)
set_aa(aa)

alias for set_antialiased

set_alpha(alpha)

Set the alpha tranparency of the patch.

ACCEPTS: float or None

set_antialiased(aa)

Set whether to use antialiased rendering

ACCEPTS: [True | False] or None for default

set_color(c)

Set both the edgecolor and the facecolor.

ACCEPTS: matplotlib color spec

See also

set_facecolor(), set_edgecolor()
For setting the edge or face color individually.
set_ec(color)

alias for set_edgecolor

set_edgecolor(color)

Set the patch edge color

ACCEPTS: mpl color spec, or None for default, or ‘none’ for no color

set_facecolor(color)

Set the patch face color

ACCEPTS: mpl color spec, or None for default, or ‘none’ for no color

set_fc(color)

alias for set_facecolor

set_fill(b)

Set whether to fill the patch

ACCEPTS: [True | False]

set_hatch(hatch)

Set the hatching pattern

hatch can be one of:

/   - diagonal hatching
\   - back diagonal
|   - vertical
-   - horizontal
+   - crossed
x   - crossed diagonal
o   - small circle
O   - large circle
.   - dots
*   - stars

Letters can be combined, in which case all the specified hatchings are done. If same letter repeats, it increases the density of hatching of that pattern.

Hatching is supported in the PostScript, PDF, SVG and Agg backends only.

ACCEPTS: [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]

set_linestyle(ls)

Set the patch linestyle

ACCEPTS: [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]

set_linewidth(w)

Set the patch linewidth in points

ACCEPTS: float or None for default

set_ls(ls)

alias for set_linestyle

set_lw(lw)

alias for set_linewidth

update_from(other)

Updates this Patch from the properties of other.

zorder = 1
class matplotlib.patches.PathPatch(path, **kwargs)

Bases: matplotlib.patches.Patch

A general polycurve path patch.

path is a matplotlib.path.Path object.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number

See also

Patch
For additional kwargs
get_path()
class matplotlib.patches.Polygon(xy, closed=True, **kwargs)

Bases: matplotlib.patches.Patch

A general polygon patch.

xy is a numpy array with shape Nx2.

If closed is True, the polygon will be closed so the starting and ending points are the same.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number

See also

Patch
For additional kwargs
get_closed()
get_path()
get_xy()
set_closed(closed)
set_xy(xy)
xy

Set/get the vertices of the polygon. This property is provided for backward compatibility with matplotlib 0.91.x only. New code should use get_xy() and set_xy() instead.

class matplotlib.patches.Rectangle(xy, width, height, angle=0.0, **kwargs)

Bases: matplotlib.patches.Patch

Draw a rectangle with lower left at xy = (x, y) with specified width and height.

angle
rotation in degrees (anti-clockwise)

fill is a boolean indicating whether to fill the rectangle

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
contains(mouseevent)
get_bbox()
get_height()

Return the height of the rectangle

get_patch_transform()
get_path()

Return the vertices of the rectangle

get_width()

Return the width of the rectangle

get_x()

Return the left coord of the rectangle

get_xy()

Return the left and bottom coords of the rectangle

get_y()

Return the bottom coord of the rectangle

set_bounds(*args)

Set the bounds of the rectangle: l,b,w,h

ACCEPTS: (left, bottom, width, height)

set_height(h)

Set the width rectangle

ACCEPTS: float

set_width(w)

Set the width rectangle

ACCEPTS: float

set_x(x)

Set the left coord of the rectangle

ACCEPTS: float

set_xy(xy)

Set the left and bottom coords of the rectangle

ACCEPTS: 2-item sequence

set_y(y)

Set the bottom coord of the rectangle

ACCEPTS: float

xy

Return the left and bottom coords of the rectangle

class matplotlib.patches.RegularPolygon(xy, numVertices, radius=5, orientation=0, **kwargs)

Bases: matplotlib.patches.Patch

A regular polygon patch.

Constructor arguments:

xy
A length 2 tuple (x, y) of the center.
numVertices
the number of vertices.
radius
The distance from the center to each of the vertices.
orientation
rotates the polygon (in radians).

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
get_patch_transform()
get_path()
numvertices
orientation
radius
xy
class matplotlib.patches.Shadow(patch, ox, oy, props=None, **kwargs)

Bases: matplotlib.patches.Patch

Create a shadow of the given patch offset by ox, oy. props, if not None, is a patch property update dictionary. If None, the shadow will have have the same color as the face, but darkened.

kwargs are

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
draw(renderer)
get_patch_transform()
get_path()
class matplotlib.patches.Wedge(center, r, theta1, theta2, width=None, **kwargs)

Bases: matplotlib.patches.Patch

Wedge shaped patch.

Draw a wedge centered at x, y center with radius r that sweeps theta1 to theta2 (in degrees). If width is given, then a partial wedge is drawn from inner radius r - width to outer radius r.

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
get_path()
set_center(center)
set_radius(radius)
set_theta1(theta1)
set_theta2(theta2)
set_width(width)
class matplotlib.patches.YAArrow(figure, xytip, xybase, width=4, frac=0.1, headwidth=12, **kwargs)

Bases: matplotlib.patches.Patch

Yet another arrow class.

This is an arrow that is defined in display space and has a tip at x1, y1 and a base at x2, y2.

Constructor arguments:

xytip
(x, y) location of arrow tip
xybase
(x, y) location the arrow base mid point
figure
The Figure instance (fig.dpi)
width
The width of the arrow in points
frac
The fraction of the arrow length occupied by the head
headwidth
The width of the base of the arrow head in points

Valid kwargs are:

Property Description
agg_filter unknown
alpha float or None
animated [True | False]
antialiased or aa [True | False] or None for default
axes an Axes instance
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color matplotlib color spec
contains a callable function
edgecolor or ec mpl color spec, or None for default, or ‘none’ for no color
facecolor or fc mpl color spec, or None for default, or ‘none’ for no color
figure a matplotlib.figure.Figure instance
fill [True | False]
gid an id string
hatch [‘/’ | ‘\’ | ‘|’ | ‘-‘ | ‘+’ | ‘x’ | ‘o’ | ‘O’ | ‘.’ | ‘*’]
label string or anything printable with ‘%s’ conversion.
linestyle or ls [‘solid’ | ‘dashed’ | ‘dashdot’ | ‘dotted’]
linewidth or lw float or None for default
lod [True | False]
path_effects unknown
picker [None|float|boolean|callable]
rasterized [True | False | None]
sketch_params unknown
snap unknown
transform Transform instance
url a url string
visible [True | False]
zorder any number
get_patch_transform()
get_path()
getpoints(x1, y1, x2, y2, k)

For line segment defined by (x1, y1) and (x2, y2) return the points on the line that is perpendicular to the line and intersects (x2, y2) and the distance from (x2, y2) of the returned points is k.

matplotlib.patches.bbox_artist(artist, renderer, props=None, fill=True)

This is a debug function to draw a rectangle around the bounding box returned by get_window_extent() of an artist, to test whether the artist is returning the correct bbox.

props is a dict of rectangle props with the additional property ‘pad’ that sets the padding around the bbox in points.

matplotlib.patches.draw_bbox(bbox, renderer, color='k', trans=None)

This is a debug function to draw a rectangle around the bounding box returned by get_window_extent() of an artist, to test whether the artist is returning the correct bbox.

matplotlib.text

Classes for including text in a figure.

class matplotlib.text.Annotation(s, xy, xytext=None, xycoords='data', textcoords=None, arrowprops=None, annotation_clip=None, **kwargs)

Bases: matplotlib.text.Text, matplotlib.text._AnnotationBase

A Text class to make annotating things in the figure, such as Figure, Axes, Rectangle, etc., easier.

Annotate the x, y point xy with text s at x, y location xytext. (If xytext = None, defaults to xy, and if textcoords = None, defaults to xycoords).

arrowprops, if not None, is a dictionary of line properties (see matplotlib.lines.Line2D) for the arrow that connects annotation to the point.

If the dictionary has a key arrowstyle, a FancyArrowPatch instance is created with the given dictionary and is drawn. Otherwise, a YAArow patch instance is created and drawn. Valid keys for YAArow are

Key Description
width the width of the arrow in points
frac the fraction of the arrow length occupied by the head
headwidth the width of the base of the arrow head in points
shrink oftentimes it is convenient to have the arrowtip and base a bit away from the text and point being annotated. If d is the distance between the text and annotated point, shrink will shorten the arrow so the tip and base are shink percent of the distance d away from the endpoints. ie, shrink=0.05 is 5%
? any key for matplotlib.patches.polygon

Valid keys for FancyArrowPatch are

Key Description
arrowstyle the arrow style
connectionstyle the connection style
relpos default is (0.5, 0.5)
patchA default is bounding box of the text
patchB default is None
shrinkA default is 2 points
shrinkB default is 2 points
mutation_scale default is text size (in points)
mutation_aspect default is 1.
? any key for matplotlib.patches.PathPatch

xycoords and textcoords are strings that indicate the coordinates of xy and xytext.

Property Description
‘figure points’ points from the lower left corner of the figure
‘figure pixels’ pixels from the lower left corner of the figure
‘figure fraction’ 0,0 is lower left of figure and 1,1 is upper right
‘axes points’ points from lower left corner of axes
‘axes pixels’ pixels from lower left corner of axes
‘axes fraction’ 0,0 is lower left of axes and 1,1 is upper right
‘data’ use the coordinate system of the object being annotated (default)
‘offset points’ Specify an offset (in points) from the xy value
‘polar’ you can specify theta, r for the annotation, even in cartesian plots. Note that if you are using a polar axes, you do not need to specify polar for the coordinate system since that is the native “data” coordinate system.

If a ‘points’ or ‘pixels’ option is specified, values will be added to the bottom-left and if negative, values will be subtracted from the top-right. e.g.:

# 10 points to the right of the left border of the axes and
# 5 points below the top border
xy=(10,-5), xycoords='axes points'

You may use an instance of Transform or Artist. See Annotating Axes for more details.

The annotation_clip attribute contols the visibility of the annotation when it goes outside the axes area. If True, the annotation will only be drawn when the xy is inside the axes. If False, the annotation will always be drawn regardless of its position. The default is None, which behave as True only if xycoords is”data”.

Additional kwargs are Text properties:

Property Description
agg_filter unknown
alpha float (0.0 transparent through 1.0 opaque)
animated [True | False]
axes an Axes instance
backgroundcolor any matplotlib color
bbox rectangle prop dict
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color any matplotlib color
contains a callable function
family or fontfamily or fontname or name [FONTNAME | ‘serif’ | ‘sans-serif’ | ‘cursive’ | ‘fantasy’ | ‘monospace’ ]
figure a matplotlib.figure.Figure instance
fontproperties or font_properties a matplotlib.font_manager.FontProperties instance
gid an id string
horizontalalignment or ha [ ‘center’ | ‘right’ | ‘left’ ]
label string or anything printable with ‘%s’ conversion.
linespacing float (multiple of font size)
lod [True | False]
multialignment [‘left’ | ‘right’ | ‘center’ ]
path_effects unknown
picker [None|float|boolean|callable]
position (x,y)
rasterized [True | False | None]
rotation [ angle in degrees | ‘vertical’ | ‘horizontal’ ]
rotation_mode unknown
size or fontsize [size in points | ‘xx-small’ | ‘x-small’ | ‘small’ | ‘medium’ | ‘large’ | ‘x-large’ | ‘xx-large’ ]
sketch_params unknown
snap unknown
stretch or fontstretch [a numeric value in range 0-1000 | ‘ultra-condensed’ | ‘extra-condensed’ | ‘condensed’ | ‘semi-condensed’ | ‘normal’ | ‘semi-expanded’ | ‘expanded’ | ‘extra-expanded’ | ‘ultra-expanded’ ]
style or fontstyle [ ‘normal’ | ‘italic’ | ‘oblique’]
text string or anything printable with ‘%s’ conversion.
transform Transform instance
url a url string
variant or fontvariant [ ‘normal’ | ‘small-caps’ ]
verticalalignment or va or ma [ ‘center’ | ‘top’ | ‘bottom’ | ‘baseline’ ]
visible [True | False]
weight or fontweight [a numeric value in range 0-1000 | ‘ultralight’ | ‘light’ | ‘normal’ | ‘regular’ | ‘book’ | ‘medium’ | ‘roman’ | ‘semibold’ | ‘demibold’ | ‘demi’ | ‘bold’ | ‘heavy’ | ‘extra bold’ | ‘black’ ]
x float
y float
zorder any number
contains(event)
draw(artist, renderer, *args, **kwargs)

Draw the Annotation object to the given renderer.

set_figure(fig)
update_bbox_position_size(renderer)

Update the location and the size of the bbox. This method should be used when the position and size of the bbox needs to be updated before actually drawing the bbox.

update_positions(renderer)

“Update the pixel positions of the annotated point and the text.

class matplotlib.text.OffsetFrom(artist, ref_coord, unit='points')

Bases: object

get_unit()
set_unit(unit)
class matplotlib.text.Text(x=0, y=0, text='', color=None, verticalalignment='baseline', horizontalalignment='left', multialignment=None, fontproperties=None, rotation=None, linespacing=None, rotation_mode=None, **kwargs)

Bases: matplotlib.artist.Artist

Handle storing and drawing of text in window or data coordinates.

Create a Text instance at x, y with string text.

Valid kwargs are

Property Description
agg_filter unknown
alpha float (0.0 transparent through 1.0 opaque)
animated [True | False]
axes an Axes instance
backgroundcolor any matplotlib color
bbox rectangle prop dict
clip_box a matplotlib.transforms.Bbox instance
clip_on [True | False]
clip_path [ (Path, Transform) | Patch | None ]
color any matplotlib color
contains a callable function
family or fontfamily or fontname or name [FONTNAME | ‘serif’ | ‘sans-serif’ | ‘cursive’ | ‘fantasy’ | ‘monospace’ ]
figure a matplotlib.figure.Figure instance
fontproperties or font_properties a matplotlib.font_manager.FontProperties instance
gid an id string
horizontalalignment or ha [ ‘center’ | ‘right’ | ‘left’ ]
label string or anything printable with ‘%s’ conversion.
linespacing float (multiple of font size)
lod [True | False]
multialignment [‘left’ | ‘right’ | ‘center’ ]
path_effects unknown
picker [None|float|boolean|callable]
position (x,y)
rasterized [True | False | None]
rotation [ angle in degrees | ‘vertical’ | ‘horizontal’ ]
rotation_mode unknown
size or fontsize [size in points | ‘xx-small’ | ‘x-small’ | ‘small’ | ‘medium’ | ‘large’ | ‘x-large’ | ‘xx-large’ ]
sketch_params unknown
snap unknown
stretch or fontstretch [a numeric value in range 0-1000 | ‘ultra-condensed’ | ‘extra-condensed’ | ‘condensed’ | ‘semi-condensed’ | ‘normal’ | ‘semi-expanded’ | ‘expanded’ | ‘extra-expanded’ | ‘ultra-expanded’ ]
style or fontstyle [ ‘normal’ | ‘italic’ | ‘oblique’]
text string or anything printable with ‘%s’ conversion.
transform Transform instance
url a url string
variant or fontvariant [ ‘normal’ | ‘small-caps’ ]
verticalalignment or va or ma [ ‘center’ | ‘top’ | ‘bottom’ | ‘baseline’ ]
visible [True | False]
weight or fontweight [a numeric value in range 0-1000 | ‘ultralight’ | ‘light’ | ‘normal’ | ‘regular’ | ‘book’ | ‘medium’ | ‘roman’ | ‘semibold’ | ‘demibold’ | ‘demi’ | ‘bold’ | ‘heavy’ | ‘extra bold’ | ‘black’ ]
x float
y float
zorder any number
contains(mouseevent)

Test whether the mouse event occurred in the patch.

In the case of text, a hit is true anywhere in the axis-aligned bounding-box containing the text.

Returns True or False.

draw(artist, renderer, *args, **kwargs)

Draws the Text object to the given renderer.

get_bbox_patch()

Return the bbox Patch object. Returns None if the the FancyBboxPatch is not made.

get_color()

Return the color of the text

get_family()

Return the list of font families used for font lookup

get_font_properties()

alias for get_fontproperties

get_fontfamily()

alias for get_family

get_fontname()

alias for get_name

get_fontproperties()

Return the FontProperties object

get_fontsize()

alias for get_size

get_fontstretch()

alias for get_stretch

get_fontstyle()

alias for get_style

get_fontvariant()

alias for get_variant

get_fontweight()

alias for get_weight

get_ha()

alias for get_horizontalalignment

get_horizontalalignment()

Return the horizontal alignment as string. Will be one of ‘left’, ‘center’ or ‘right’.

get_name()

Return the font name as string

get_position()

Return the position of the text as a tuple (x, y)

get_prop_tup()

Return a hashable tuple of properties.

Not intended to be human readable, but useful for backends who want to cache derived information about text (eg layouts) and need to know if the text has changed.

get_rotation()

return the text angle as float in degrees

get_rotation_mode()

get text rotation mode

get_size()

Return the font size as integer

get_stretch()

Get the font stretch as a string or number

get_style()

Return the font style as string

get_text()

Get the text as string

get_va()

alias for getverticalalignment()

get_variant()

Return the font variant as a string

get_verticalalignment()

Return the vertical alignment as string. Will be one of ‘top’, ‘center’, ‘bottom’ or ‘baseline’.

get_weight()

Get the font weight as string or number

get_window_extent(renderer=None, dpi=None)

Return a Bbox object bounding the text, in display units.

In addition to being used internally, this is useful for specifying clickable regions in a png file on a web page.

renderer defaults to the _renderer attribute of the text object. This is not assigned until the first execution of draw(), so you must use this kwarg if you want to call get_window_extent() prior to the first draw(). For getting web page regions, it is simpler to call the method after saving the figure.

dpi defaults to self.figure.dpi; the renderer dpi is irrelevant. For the web application, if figure.dpi is not the value used when saving the figure, then the value that was used must be specified as the dpi argument.

static is_math_text(s)

Returns a cleaned string and a boolean flag. The flag indicates if the given string s contains any mathtext, determined by counting unescaped dollar signs. If no mathtext is present, the cleaned string has its dollar signs unescaped. If usetex is on, the flag always has the value “TeX”.

set_backgroundcolor(color)

Set the background color of the text by updating the bbox.

See also

set_bbox()
To change the position of the bounding box.

ACCEPTS: any matplotlib color

set_bbox(rectprops)

Draw a bounding box around self. rectprops are any settable properties for a rectangle, eg facecolor=’red’, alpha=0.5.

t.set_bbox(dict(facecolor=’red’, alpha=0.5))

If rectprops has “boxstyle” key. A FancyBboxPatch is initialized with rectprops and will be drawn. The mutation scale of the FancyBboxPath is set to the fontsize.

ACCEPTS: rectangle prop dict

set_color(color)

Set the foreground color of the text

ACCEPTS: any matplotlib color

set_family(fontname)

Set the font family. May be either a single string, or a list of strings in decreasing priority. Each string may be either a real font name or a generic font class name. If the latter, the specific font names will be looked up in the matplotlibrc file.

ACCEPTS: [FONTNAME | ‘serif’ | ‘sans-serif’ | ‘cursive’ | ‘fantasy’ |
‘monospace’ ]
set_font_properties(fp)

alias for set_fontproperties

set_fontname(fontname)

alias for set_family

set_fontproperties(fp)

Set the font properties that control the text. fp must be a matplotlib.font_manager.FontProperties object.

ACCEPTS: a matplotlib.font_manager.FontProperties instance

set_fontsize(fontsize)

alias for set_size

set_fontstretch(stretch)

alias for set_stretch

set_fontstyle(fontstyle)

alias for set_style

set_fontvariant(variant)

alias for set_variant

set_fontweight(weight)

alias for set_weight

set_ha(align)

alias for set_horizontalalignment

set_horizontalalignment(align)

Set the horizontal alignment to one of

ACCEPTS: [ ‘center’ | ‘right’ | ‘left’ ]

set_linespacing(spacing)

Set the line spacing as a multiple of the font size. Default is 1.2.

ACCEPTS: float (multiple of font size)

set_ma(align)

alias for set_verticalalignment

set_multialignment(align)

Set the alignment for multiple lines layout. The layout of the bounding box of all the lines is determined bu the horizontalalignment and verticalalignment properties, but the multiline text within that box can be

ACCEPTS: [‘left’ | ‘right’ | ‘center’ ]

set_name(fontname)

alias for set_family

set_position(xy)

Set the (x, y) position of the text

ACCEPTS: (x,y)

set_rotation(s)

Set the rotation of the text

ACCEPTS: [ angle in degrees | ‘vertical’ | ‘horizontal’ ]

set_rotation_mode(m)

set text rotation mode. If “anchor”, the un-rotated text will first aligned according to their ha and va, and then will be rotated with the alignement reference point as a origin. If None (default), the text will be rotated first then will be aligned.

set_size(fontsize)

Set the font size. May be either a size string, relative to the default font size, or an absolute font size in points.

ACCEPTS: [size in points | ‘xx-small’ | ‘x-small’ | ‘small’ |
‘medium’ | ‘large’ | ‘x-large’ | ‘xx-large’ ]
set_stretch(stretch)

Set the font stretch (horizontal condensation or expansion).

ACCEPTS: [a numeric value in range 0-1000 | ‘ultra-condensed’ |
‘extra-condensed’ | ‘condensed’ | ‘semi-condensed’ | ‘normal’ | ‘semi-expanded’ | ‘expanded’ | ‘extra-expanded’ | ‘ultra-expanded’ ]
set_style(fontstyle)

Set the font style.

ACCEPTS: [ ‘normal’ | ‘italic’ | ‘oblique’]

set_text(s)

Set the text string s

It may contain newlines (\n) or math in LaTeX syntax.

ACCEPTS: string or anything printable with ‘%s’ conversion.

set_va(align)

alias for set_verticalalignment

set_variant(variant)

Set the font variant, either ‘normal’ or ‘small-caps’.

ACCEPTS: [ ‘normal’ | ‘small-caps’ ]

set_verticalalignment(align)

Set the vertical alignment

ACCEPTS: [ ‘center’ | ‘top’ | ‘bottom’ | ‘baseline’ ]

set_weight(weight)

Set the font weight.

ACCEPTS: [a numeric value in range 0-1000 | ‘ultralight’ | ‘light’ |
‘normal’ | ‘regular’ | ‘book’ | ‘medium’ | ‘roman’ | ‘semibold’ | ‘demibold’ | ‘demi’ | ‘bold’ | ‘heavy’ | ‘extra bold’ | ‘black’ ]
set_x(x)

Set the x position of the text

ACCEPTS: float

set_y(y)

Set the y position of the text

ACCEPTS: float

update_bbox_position_size(renderer)

Update the location and the size of the bbox. This method should be used when the position and size of the bbox needs to be updated before actually drawing the bbox.

update_from(other)

Copy properties from other to self

zorder = 3
class matplotlib.text.TextWithDash(x=0, y=0, text='', color=None, verticalalignment='center', horizontalalignment='center', multialignment=None, fontproperties=None, rotation=None, linespacing=None, dashlength=0.0, dashdirection=0, dashrotation=None, dashpad=3, dashpush=0)

Bases: matplotlib.text.Text

This is basically a Text with a dash (drawn with a Line2D) before/after it. It is intended to be a drop-in replacement for Text, and should behave identically to it when dashlength = 0.0.

The dash always comes between the point specified by set_position() and the text. When a dash exists, the text alignment arguments (horizontalalignment, verticalalignment) are ignored.

dashlength is the length of the dash in canvas units. (default = 0.0).

dashdirection is one of 0 or 1, where 0 draws the dash after the text and 1 before. (default = 0).

dashrotation specifies the rotation of the dash, and should generally stay None. In this case get_dashrotation() returns get_rotation(). (I.e., the dash takes its rotation from the text’s rotation). Because the text center is projected onto the dash, major deviations in the rotation cause what may be considered visually unappealing results. (default = None)

dashpad is a padding length to add (or subtract) space between the text and the dash, in canvas units. (default = 3)

dashpush “pushes” the dash and text away from the point specified by set_position() by the amount in canvas units. (default = 0)

Note

The alignment of the two objects is based on the bounding box of the Text, as obtained by get_window_extent(). This, in turn, appears to depend on the font metrics as given by the rendering backend. Hence the quality of the “centering” of the label text with respect to the dash varies depending on the backend used.

Note

I’m not sure that I got the get_window_extent() right, or whether that’s sufficient for providing the object bounding box.

draw(renderer)

Draw the TextWithDash object to the given renderer.

get_dashdirection()

Get the direction dash. 1 is before the text and 0 is after.

get_dashlength()

Get the length of the dash.

get_dashpad()

Get the extra spacing between the dash and the text, in canvas units.

get_dashpush()

Get the extra spacing between the dash and the specified text position, in canvas units.

get_dashrotation()

Get the rotation of the dash in degrees.

get_figure()

return the figure instance the artist belongs to

get_position()

Return the position of the text as a tuple (x, y)

get_prop_tup()

Return a hashable tuple of properties.

Not intended to be human readable, but useful for backends who want to cache derived information about text (eg layouts) and need to know if the text has changed.

get_window_extent(renderer=None)

Return a Bbox object bounding the text, in display units.

In addition to being used internally, this is useful for specifying clickable regions in a png file on a web page.

renderer defaults to the _renderer attribute of the text object. This is not assigned until the first execution of draw(), so you must use this kwarg if you want to call get_window_extent() prior to the first draw(). For getting web page regions, it is simpler to call the method after saving the figure.

set_dashdirection(dd)

Set the direction of the dash following the text. 1 is before the text and 0 is after. The default is 0, which is what you’d want for the typical case of ticks below and on the left of the figure.

ACCEPTS: int (1 is before, 0 is after)

set_dashlength(dl)

Set the length of the dash.

ACCEPTS: float (canvas units)

set_dashpad(dp)

Set the “pad” of the TextWithDash, which is the extra spacing between the dash and the text, in canvas units.

ACCEPTS: float (canvas units)

set_dashpush(dp)

Set the “push” of the TextWithDash, which is the extra spacing between the beginning of the dash and the specified position.

ACCEPTS: float (canvas units)

set_dashrotation(dr)

Set the rotation of the dash, in degrees

ACCEPTS: float (degrees)

set_figure(fig)

Set the figure instance the artist belong to.

ACCEPTS: a matplotlib.figure.Figure instance

set_position(xy)

Set the (x, y) position of the TextWithDash.

ACCEPTS: (x, y)

set_transform(t)

Set the matplotlib.transforms.Transform instance used by this artist.

ACCEPTS: a matplotlib.transforms.Transform instance

set_x(x)

Set the x position of the TextWithDash.

ACCEPTS: float

set_y(y)

Set the y position of the TextWithDash.

ACCEPTS: float

update_coords(renderer)

Computes the actual x, y coordinates for text based on the input x, y and the dashlength. Since the rotation is with respect to the actual canvas’s coordinates we need to map back and forth.

matplotlib.text.get_rotation(rotation)

Return the text angle as float.

rotation may be ‘horizontal’, ‘vertical’, or a numeric value in degrees.
